ISDT BattGo BG-8S Battery Meter，LCD Display Digital Battery Capacity Checker Battery Balancer Battery Tester for LiPo/Life/Li-ion/NiMH/Nicd

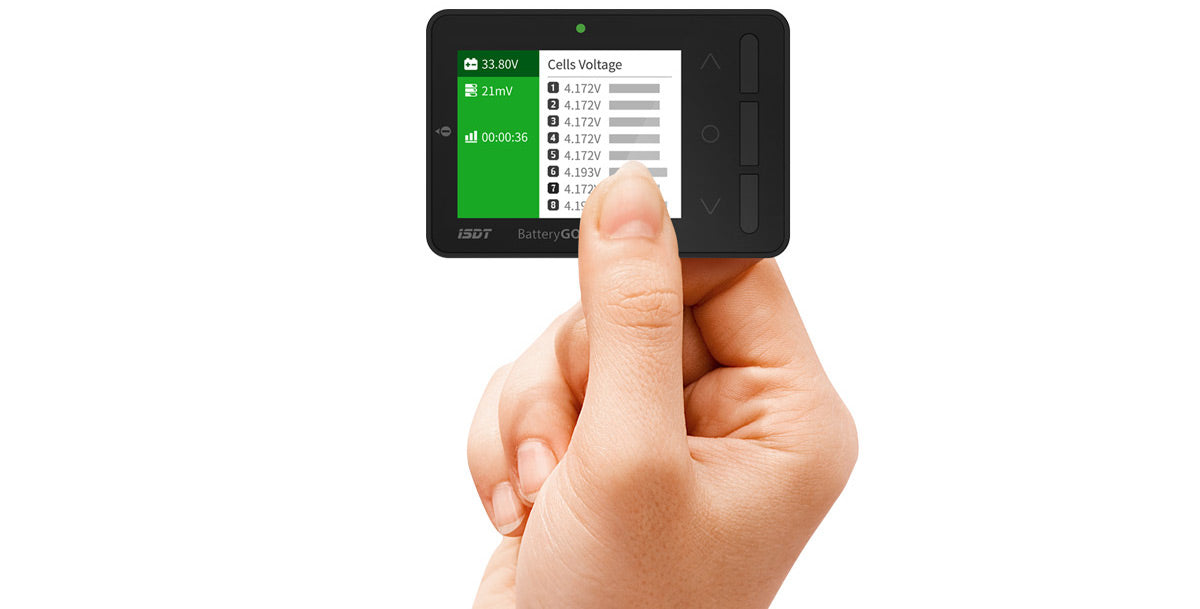

Featuring a 260,000 color display clearly visible under strong sunlight, the powerful and versatile BG-8S Smart Battery Checker provides detailed and easy-to-understand measurements on a sweeping range of battery types and sizes. Combined with accessible and highly customizable settings, reading cell voltage, battery cycles, output, and more has never been easier.

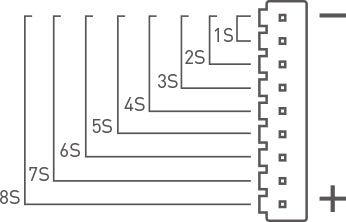

The BG-8S supports a variety of battery connection methods, including XT60 / XT60i, XH2.54 1-8S balanced lead, XH 2.54 3-pin, JST, and more. It can measure LiHv, LiPo, Li-lon, LiFe, and NiMh / Cd batteries as well as BEC.

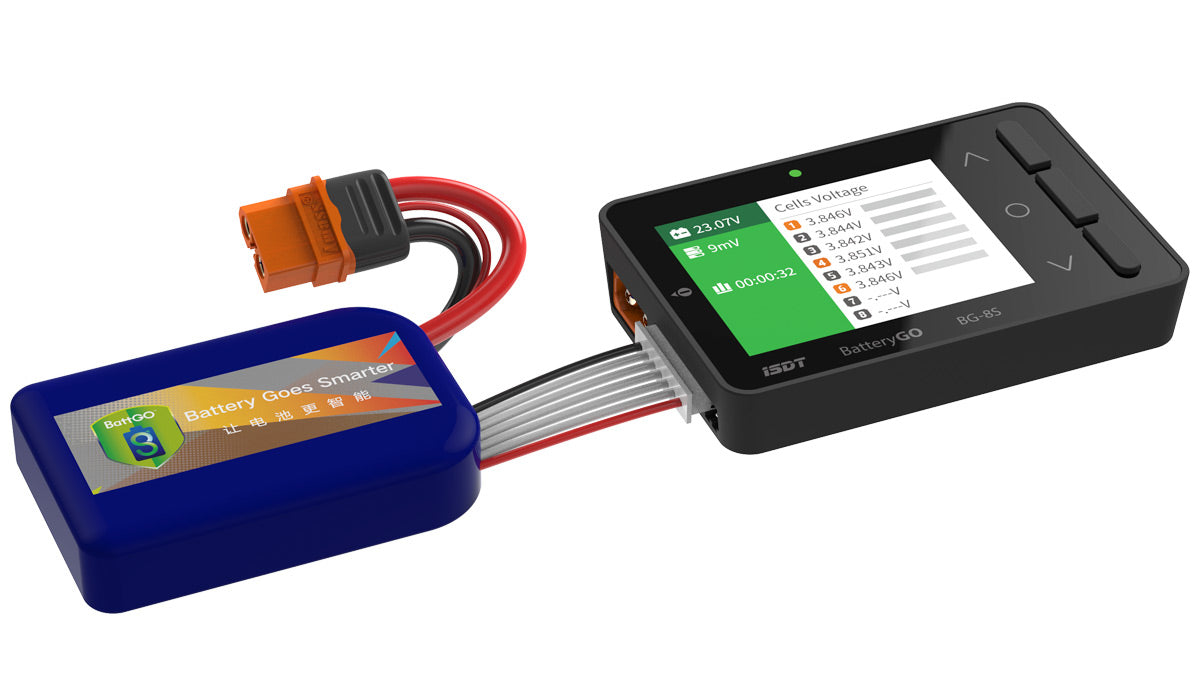

The BG-8S features a variety of smart features, including intelligent cell voltage balancing to optimize performance. Upon completion, the checker automatically enters low power mode. The BG-8S is also fully compatible with BattGO technology and uses the specially-crafted XT60i connector plug to examine batteries. Read more on BattGO.
Connected to a battery, the BG-8S also acts as a portable power bank for your personal devices. It supports Qualcomm Quick Charge 2.0 / 3.0, USB BC1.2, and Apple parameters. Its maximum output is 12V / 2A.
By connecting a standard three-pin plug, the BG-8S can not only measure the output voltage of BEC but also perform a variety of communication protocol analysis, including PWM, PPM and S.BUS. More protocol analysis support will be added in future firmware updates.
|Working Voltage||5.0 - 36V|
|Input Voltage, 1S||0.8 - 15V|
|Input Voltage, 2 - 8S||0.8 - 4.8V|
|Supported Battery Cells||1 - 8S|
|Voltage Measurement Accuracy||±0.005V @ 4.2V|
|Cell Balancing Accuracy||< 0.005|
|Supported USB Charging||QC 2.0 / 3.0, BC1.2, Maximum output 12V/2A
|Supported Smart Batteries||Charge and discharge setting -
read battery info and usage history
|Supported Battery Types||LiHv (1-8S), LiPo (1-8S), LiFe(1-8S)
Lilon (1-8S), NiMH/Cd(1-10S)
|Display||2.4〃320x240 26k IPS LCD|
|Dimensions||80 x 55 x 19 mm
|Operating Temperature||0 - 40 °C
|Storage Humidity||5 - 90% RH (noncondensing)|
