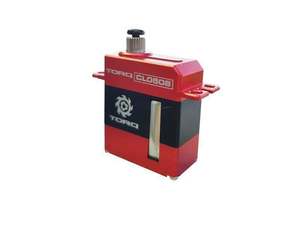

TORQ CL0508 Micro HV Servo

  • $45.99
    Unit price per
Shipping calculated at checkout.


TORQ CL0508 Micro HV Servo - Power, Performance & Pure Domination.

Optimized for second to none power & performance, TORQ brings forth a micro servo that is ready & able to push the boundaries of the micro servo world.

Designed specifically for high torque / high speed demands of helicopter, airplane & jet based aircraft, the TORQ CL0508 Micro HV Servo utilizes coreless motor technology to obtain peak torque output, equating the TORQ CL0508 Micro HV Servo as one of the most powerful micro servos on the market today.

With a crushing torque rating paired with rapid transit speeds, the TORQ CL0508 Micro HV Servo is ready to exceed the boundaries of your next flight, with next level precision and resolution that can be felt at the sticks. Ready & waiting for high voltage applications, the CL0508 operates within a wide voltage range, providing peak torque & speed with 8.4V of power.

Constructed with fully replaceable high strength steel gears, the TORQ CL0508 Micro HV Servo utilizes a thermal dissipating 6061 aluminum case that is further aided in cooling via an exposed motor design. Optimized for extreme aircraft applications that demand incessant torque and power, the CL0508 provides ultra crisp control, with in flight tactile feel that can be seen and felt.

Step up to the TORQ CL0508 Micro HV Servo - pure performance & control for epic levels of servo domination.

Features:

- Engineered for High Performance Aircraft Extremes
- Specifically Designed for Helicopter, Airplane or Jet Based Applications
- Massive Levels of Torque & Speed
- Ultra Precise, High Resolution Precision
- Coreless Motor Design for Optimized High Torque Output
- Fully Replaceable Steel Gear Train for Maximum Strength
- Excellent Thermal Dissipation via 6061 Aircraft Aluminum Case
- 8.4V High Voltage Ready
- Dual Ball Bearing Design

Torque:

6.20Kg.cm (86.10 oz. in.) @ 8.4V
5.20Kg.cm (72.21 oz. in.) @ 7.4V
4.20Kg.cm (58.32 oz. in) @ 6.0V

Transit Speed:

0.07 sec. @ 8.4V
0.08 sec. @ 7.4V
0.09 sec. @ 6.0V

Specifications:

Dimensions: 23x12x27.5mm (LxWxH)
Weight: 20g
Operating Voltage: 4.8V - 8.4V DC
Working Pulse Width / Frequency: 1520us / 333Hz

Crashes happen, and even high strength gears can take a beating. No worries, though - with the TORQ CL0508, steel replacement gears are available, making it ultra easy to replace and maintain your servos, no matter what may happen in flight or on the ground.
